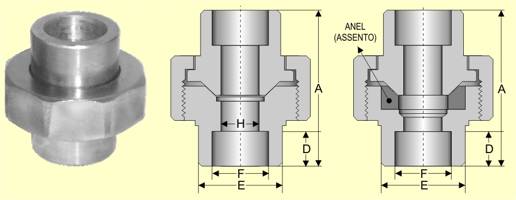

| DN |
A (mm) |
D (mm) |
E (mm) |
F (mm) |
H (mm) |
Peso Aproximado (kg) |
| 1/2″ |
73,00 |
7,93 |
41,07 |
21,71 |
6,40 |
1,36 |
| 3/4″ |
85,72 |
7,93 |
47,60 |
27,05 |
11,02 |
1,81 |
| 1″ |
90,25 |
9,52 |
57,10 |
33,78 |
15,21 |
2,04 |
| 1.1/4″ |
98,42 |
9,52 |
68,26 |
42,54 |
22,75 |
2,72 |
| 1.1/2″ |
101,70 |
12,70 |
74,61 |
48,64 |
21,94 |
4,08 |
| 2″ |
117,50 |
15,87 |
88,90 |
61,11 |
38,17 |
7,48 |
|
|
